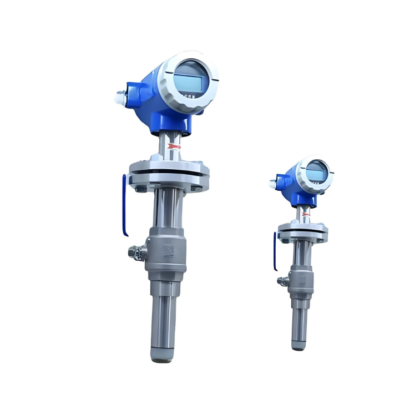

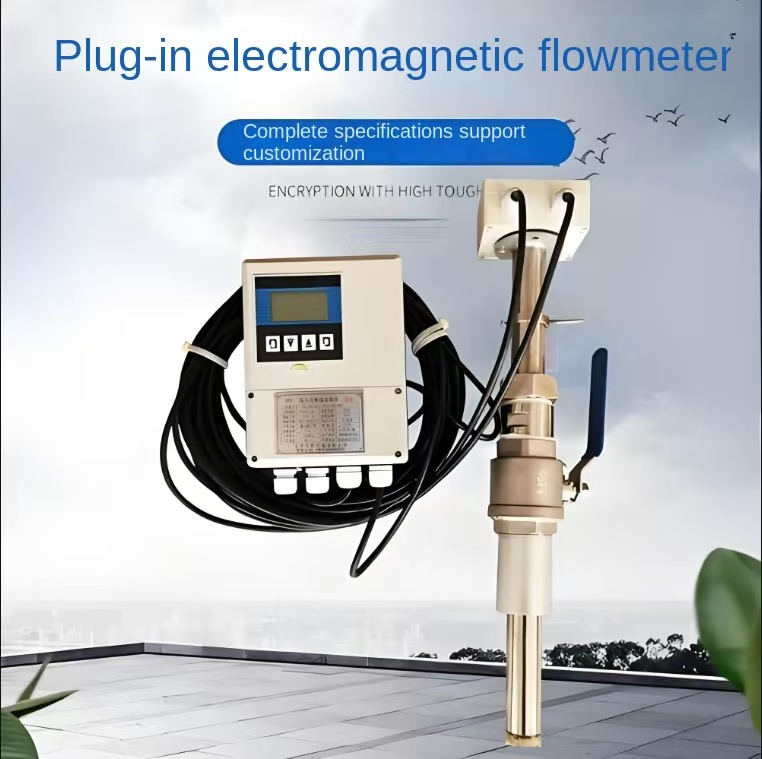

1、 Overview The plug-in electromagnetic flowmeter operates based on Faraday’s law of electromagnetic induction and is used to measure the volumetric flow rate of conductive liquids with a conductivity greater than 5 μ S/cm. It is an inductive instrument for measuring the volumetric flow rate of conductive media. In addition to measuring the volumetric flow rate of general conductive liquids, it can also be used to measure the volumetric flow rate of strong corrosive liquids such as strong acids and alkalis, as well as homogeneous liquid-solid two-phase suspensions such as mud, slurry, and pulp. Widely used in industrial sectors such as petroleum, chemical, metallurgical, textile, papermaking, environmental protection, food, as well as municipal management, water conservancy construction, river dredging and other fields for flow measurement.
Description
2、 Working principle According to Faraday’s principle of electromagnetic induction, a pair of detection electrodes are installed on the tube wall perpendicular to the axis of the measuring tube and the magnetic field lines. When the conductive liquid moves along the axis of the measuring tube, it cuts the magnetic field lines and generates an induced potential. This induced potential is detected by the two detection electrodes, and the value is proportional to the flow rate. Its value is: E=KBVD In the formula: E – Induced potential; K – coefficient related to magnetic field distribution and axial length; B – Magnetic induction intensity; V – average flow velocity of conductive liquid; D – electrode spacing; (Measuring the inner diameter of the tube)

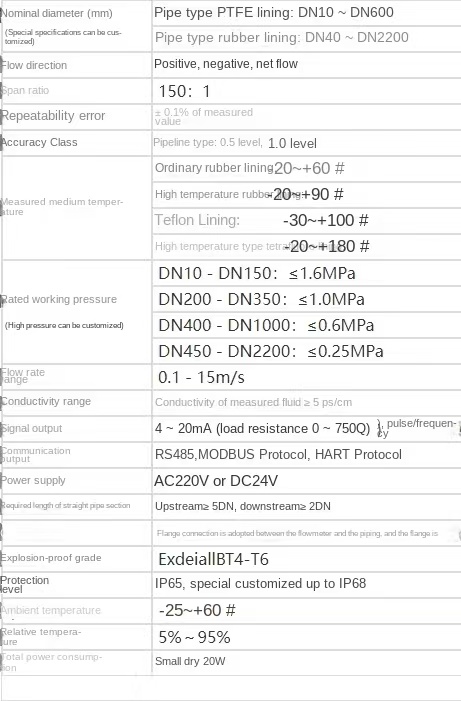

3、 Instrument features
Full digital processing, strong anti-interference ability, reliable measurement, high accuracy, and a flow measurement range of up to 150:1;
Ultra low EMI switching power supply, suitable for a wide range of power supply voltage changes, with good EMI resistance performance;
Adopting a 16 bit embedded microprocessor, it has fast computing speed, high accuracy, and programmable low-frequency rectangular wave excitation, which improves the flow measurement
Stability and low power consumption;
Adopting SMD devices and surface mount technology, the circuit reliability is high;
There are no movable parts or flow blocking components inside the pipeline, and there is almost no additional pressure loss during measurement;
On site, the range can be modified online according to the actual needs of the user;
The measurement results are independent of physical parameters such as flow velocity distribution, fluid pressure, temperature, density, viscosity, etc;
High definition backlit LCD display, fully Chinese menu operation, easy to use, simple to operate, easy to learn and understand;
■ It has digital communication signal outputs such as RS485, RS232, Hart, and Modbus; (Optional)
■ It has self checking and self diagnostic functions;
■ Hourly total volume recording function, which records the total flow volume in hours and is suitable for time-sharing measurement system (optional);
There are three integrators inside that can display forward accumulation, reverse accumulation, and difference accumulation, respectively. There is also a non power down clock inside that can remember
Record 16 power outage times. (Optional);
Installation diagram of plug-in electromagnetic flowmeter
